$1,753.00
Availability:
Many In Stock
Sku: VW9-XTG6
ACT

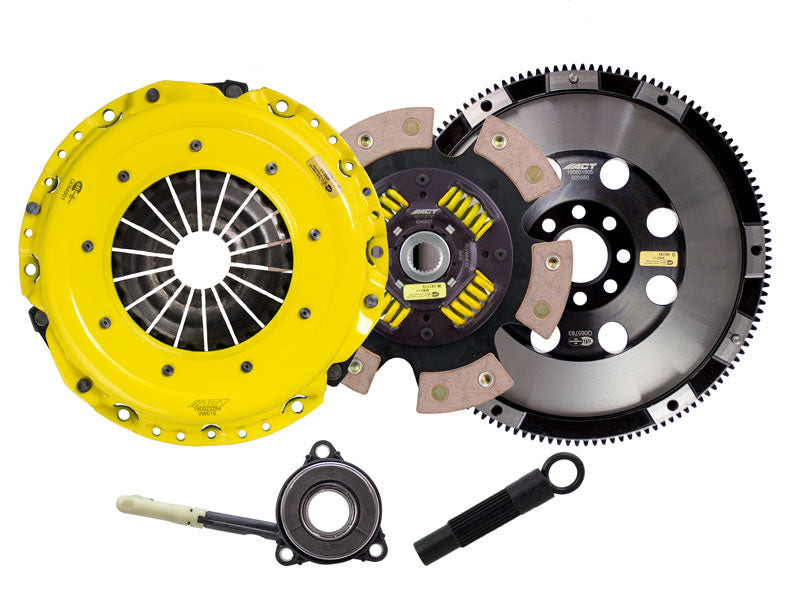

Introducing the VW9-XTG6 Xtreme/Race Sprung 6 Pad Clutch Kit by ACT, engineered to exceed the expectations of the most demanding drivers. This kit combines the Xtreme pressure plate with a 6-pad spring-centered race disc, offering unmatched performance and reliability for both street and race applications.
The Xtreme pressure plate utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and maximize clutch life. Each diaphragm undergoes a four-stage heat-treating process, ensuring unparalleled performance even under the most rigorous driving conditions. Precision cover stampings provide rigidity and consistency for seamless gear transitions.
The 6-pad spring-centered race disc features a spring-center construction to effectively damp torsional vibrations and withstand harsh conditions. ACT spring retainers employ wraparound spring windows and thicker stampings to enhance spring support, reduce stress concentrations, and improve strength and reliability. With the 6-pad spring-centered race disc, engagement is sharper, allowing for faster shifts and optimal performance.
Key Features:
- Xtreme pressure plate for maximum clamp load and reduced deflection
- 6-pad spring-centered race disc for enhanced performance and durability
- Exclusive diaphragm design for extended clutch life
- Precision cover stampings for consistent rigidity
- Sharp engagement with OE to mild gear rattle
Specifications:
- Product Weight: 31.8 lbs.
- Torque Capacity: 723 ft/lbs. (129% over OE)
- Clutch Disc Diameter: 9.4 inches (240mm)
- Input Shaft Diameter: 0.9375 inches
- Pressure Plate Type: Xtreme
- Flywheel Type: Streetlite
- Warranty: 12 Months
Recommended for both high horsepower street and race use, the VW9-XTG6 kit undergoes rigorous testing, including 100% clamp load testing and dynamic computer balancing, ensuring reliability even at high RPMs.
Vehicle Fitment:
- Various Volkswagen models including GTI and Golf R from 2015 to 2019
Experience the ACT difference with the VW9-XTG6 Xtreme/Race Sprung 6 Pad Clutch Kit - the ultimate choice for drivers seeking uncompromising performance and reliability in their high-performance vehicles
Introducing the VW9-XTG6 Xtreme/Race Sprung 6 Pad Clutch Kit by ACT, engineered to exceed the expectations of the most demanding drivers. This kit combines the Xtreme pressure plate with a 6-pad spring-centered race disc, offering unmatched performance and reliability for both street and race applications.
The Xtreme pressure plate utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and maximize clutch life. Each diaphragm undergoes a four-stage heat-treating process, ensuring unparalleled performance even under the most rigorous driving conditions. Precision cover stampings provide rigidity and consistency for seamless gear transitions.
The 6-pad spring-centered race disc features a spring-center construction to effectively damp torsional vibrations and withstand harsh conditions. ACT spring retainers employ wraparound spring windows and thicker stampings to enhance spring support, reduce stress concentrations, and improve strength and reliability. With the 6-pad spring-centered race disc, engagement is sharper, allowing for faster shifts and optimal performance.
Key Features:
- Xtreme pressure plate for maximum clamp load and reduced deflection
- 6-pad spring-centered race disc for enhanced performance and durability
- Exclusive diaphragm design for extended clutch life
- Precision cover stampings for consistent rigidity
- Sharp engagement with OE to mild gear rattle
Specifications:
- Product Weight: 31.8 lbs.
- Torque Capacity: 723 ft/lbs. (129% over OE)
- Clutch Disc Diameter: 9.4 inches (240mm)
- Input Shaft Diameter: 0.9375 inches
- Pressure Plate Type: Xtreme
- Flywheel Type: Streetlite
- Warranty: 12 Months
Recommended for both high horsepower street and race use, the VW9-XTG6 kit undergoes rigorous testing, including 100% clamp load testing and dynamic computer balancing, ensuring reliability even at high RPMs.
Vehicle Fitment:
- Various Volkswagen models including GTI and Golf R from 2015 to 2019
Experience the ACT difference with the VW9-XTG6 Xtreme/Race Sprung 6 Pad Clutch Kit - the ultimate choice for drivers seeking uncompromising performance and reliability in their high-performance vehicles
Frequently Asked Questions
Are ACT clutches balanced?
Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!
Will an ACT clutch increase pedal effort?
ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
Do ACT clutches require a break-in period?
For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break-in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.
Are ACT clutches repairable or rebuildable?
In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.
How much does an ACT clutch weigh?
The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
Frequently Asked Questions
Are ACT clutches balanced?
Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!
Will an ACT clutch increase pedal effort?
ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
Do ACT clutches require a break-in period?
For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break-in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.
Are ACT clutches repairable or rebuildable?
In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.
How much does an ACT clutch weigh?
The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
