Stage 4 Clutch Kit (1MD) for Hyundai Tiburon 1997-2001 2.0L (Beta L4) Stage 4 Clutch Kit (1MD) for Hyundai Tiburon 1997-2001 2.0L (Beta L4)

$421.50

GUARANTEED
TO FIT YOUR CAR

SHIPS OUT
SAME DAY

100% CUSTOMER
SATISFACTION

GUARANTEED
TO FIT YOUR CAR

SHIPS OUT
SAME DAY

100% CUSTOMER
SATISFACTION

Availability: Many In Stock
Sku: ACR-0548
Single Disc Clutch Kits
Action Clutch

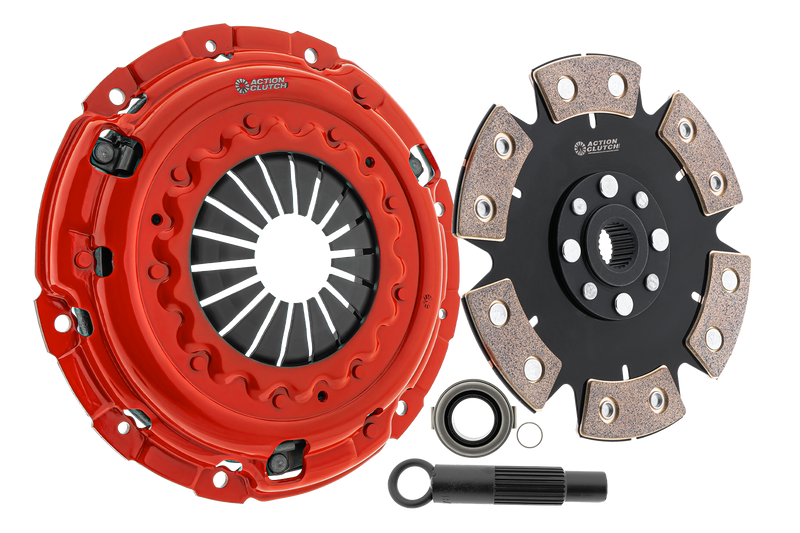

Action Clutch's Stage 4 (1MD) Clutch Kit is designed to withstand even the most challenging conditions. Featuring a heavy-duty single diaphragm pressure plate, reinforced drive straps, and an Unsprung MIBA Ceramic (available in a 4 or 6 puck) disc, this kit provides peak performance and extreme durability for low/mild horsepower vehicles. Our Unsprung MIBA Ceramic clutch kit provides quicker engagement and will introduce some clutch chatter, which will minimize after proper break-in. For those looking to take their dedicated race vehicles to the next level, the Stage 4 (1MD) Action Clutch Kit provides maximum control and power with little compromise on reliability.

At Action Clutch, every kit is quality checked by one of our experienced engineers (with over 60 years of collective experience) and signed off as safe before being released as a finished product. This gives you peace of mind knowing that your Action Clutch will perform consistently every time.

NOTE: Purchasing the wrong type of clutch kit for your specific engine power output can result in premature clutch failure, damage to the transmission and void warranty eligibility. If you’re unsure what kit is right for you, contact Action Clutch direct.

170% INCREASED HOLDING CAPACITY OVER FACTORY KIT*
RACE APPLICATIONS / DRAG / ROAD / DRIFT RACING

Specifications

Product Type Stage 4 Clutch Kit (1MD)
Product Weight (lbs) 17
SFI 1.1

What’s Included
  • Unsprung MIBA Ceramic 6 Puck Disc
  • Single Diaphragm HD Pressure Plate
  • Pilot Bearing / Bushing (when applicable)
  • Clutch Alignment Tool
  • Conventional Release Bearing

Break-in Requirements
500 street miles / Keep RPM’s under 4500, no more than half-throttle, no boost (if applicable).
Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.

Disclaimers
Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving.

Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon in sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes.

*Increase in holding capacity is rated in Crank Torque, not Wheel Torque



SFI
SFI Spec 1.1 Replacement Flywheels and Clutch Assemblies

California Residents: Prop 65 WARNING: This product MAY contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov



Action Clutch's Stage 4 (1MD) Clutch Kit is designed to withstand even the most challenging conditions. Featuring a heavy-duty single diaphragm pressure plate, reinforced drive straps, and an Unsprung MIBA Ceramic (available in a 4 or 6 puck) disc, this kit provides peak performance and extreme durability for low/mild horsepower vehicles. Our Unsprung MIBA Ceramic clutch kit provides quicker engagement and will introduce some clutch chatter, which will minimize after proper break-in. For those looking to take their dedicated race vehicles to the next level, the Stage 4 (1MD) Action Clutch Kit provides maximum control and power with little compromise on reliability.

At Action Clutch, every kit is quality checked by one of our experienced engineers (with over 60 years of collective experience) and signed off as safe before being released as a finished product. This gives you peace of mind knowing that your Action Clutch will perform consistently every time.

NOTE: Purchasing the wrong type of clutch kit for your specific engine power output can result in premature clutch failure, damage to the transmission and void warranty eligibility. If you’re unsure what kit is right for you, contact Action Clutch direct.

170% INCREASED HOLDING CAPACITY OVER FACTORY KIT*
RACE APPLICATIONS / DRAG / ROAD / DRIFT RACING

Specifications

Product Type Stage 4 Clutch Kit (1MD)
Product Weight (lbs) 17
SFI 1.1

What’s Included
  • Unsprung MIBA Ceramic 6 Puck Disc
  • Single Diaphragm HD Pressure Plate
  • Pilot Bearing / Bushing (when applicable)
  • Clutch Alignment Tool
  • Conventional Release Bearing

Break-in Requirements
500 street miles / Keep RPM’s under 4500, no more than half-throttle, no boost (if applicable).
Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.

Disclaimers
Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving.

Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon in sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes.

*Increase in holding capacity is rated in Crank Torque, not Wheel Torque



SFI
SFI Spec 1.1 Replacement Flywheels and Clutch Assemblies

California Residents: Prop 65 WARNING: This product MAY contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov



Frequently Asked Questions

Are ACT clutches balanced?

Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!

Will an ACT clutch increase pedal effort?

ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.

Do ACT clutches require a break-in period?

For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break-in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.

Are ACT clutches repairable or rebuildable?

In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.

How much does an ACT clutch weigh?

The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.

Frequently Asked Questions

Are ACT clutches balanced?

Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!

Will an ACT clutch increase pedal effort?

ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.

Do ACT clutches require a break-in period?

For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break-in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.

Are ACT clutches repairable or rebuildable?

In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.

How much does an ACT clutch weigh?

The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
